Goodell-Pratt Breast Drills
This listing has been developed from information found in Goodell Brothers and Goodell-Pratt Company catalogs. The features listed for each drill may differ from actual examples. While the company typically stressed new features in its catalogs, it seldom mentioned the disappearance of a feature or the addition of a feature that had become so commonly accepted that it was no longer noteworthy. Then too, production practices varied from catalog copy and illustrations were slow to be updated.

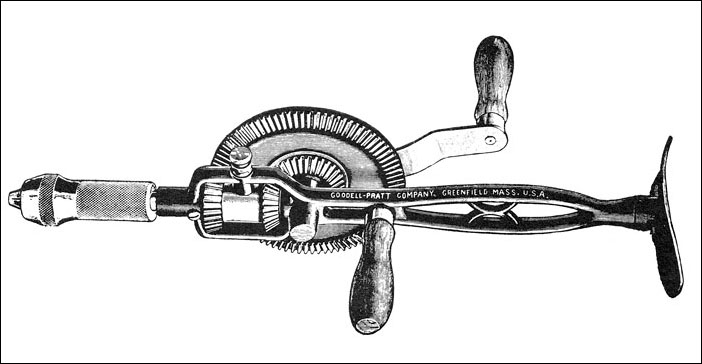

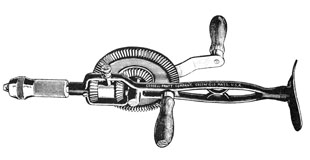

No. 07
Two-speed breast drill

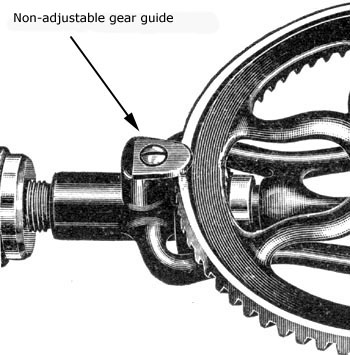

Malleable iron frame; hardwood handles; non-adjustable gear guide; speeds adjusted by turning shifter knob on frame; adjustable breast plate; two-jaw chuck for holding square-shanked bits. Frame painted black; drive gear red; bright parts nickel plated.

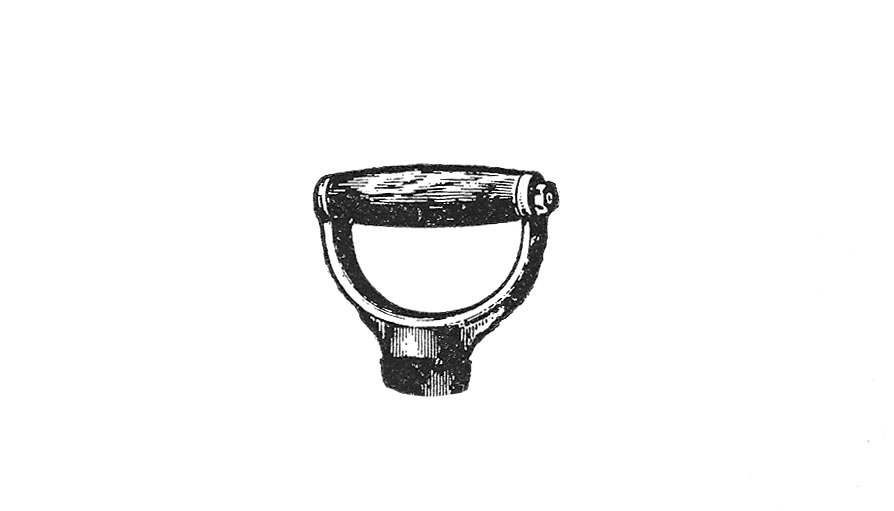

Optional D-type handle available 1913-1930. Identical to No. 7 save for cheaper chuck. Manufactured by Millers Falls as of 1931.
Illustration from 1905 catalog.
| Length | Speed(s) | Pinion Gear(s) | Start Date | End Date |
|---|---|---|---|---|
| 16 1/2 inches | 3 1/2:1 and 1 1/2:1 | double pinion | 1901 | 1933 |

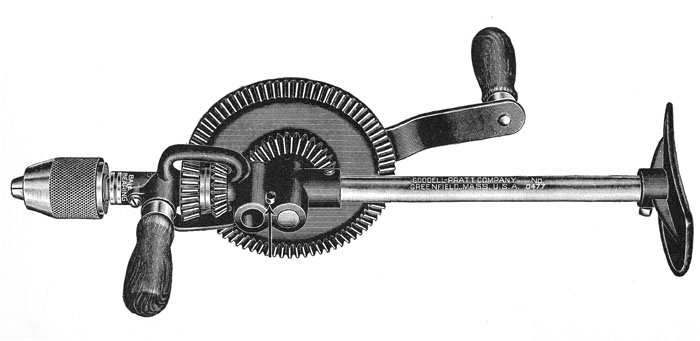

No. 0477
Two-speed breast drill

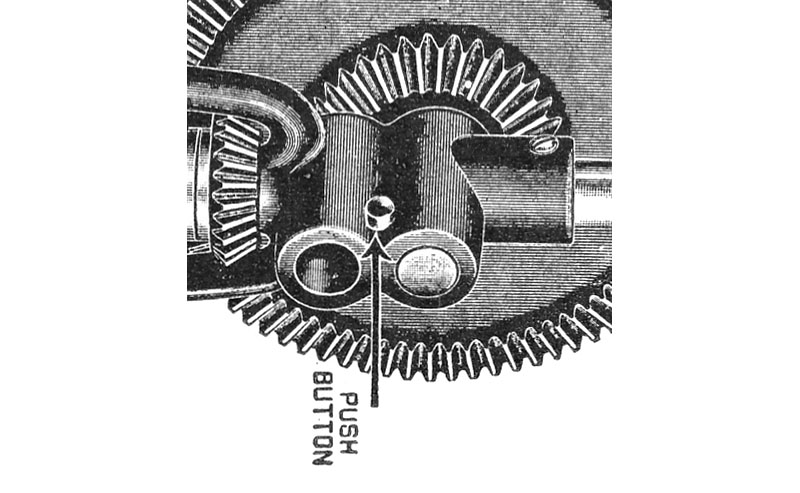

Rod-type frame; hardwood handles; single release button allows speed change without removing drill from work; ball thrust bearing; adjustable breast plate; three-jaw, spring-type chuck adjustable from 0 to 1/2 inch. Cast iron parts of frame and breast plate painted black; drive gear red; unpainted metal parts are polished, rather than nickel plated.
Identical to No. 477 but finishes are cheaper. Manufactured by Millers Falls as of 1931.
Illustration from 1930 catalog.
| Length | Speed(s) | Pinion Gear(s) | Start Date | End Date |
|---|---|---|---|---|
| 16 1/2 inches | 3 1/2:1 and 1 1/2:1 | double pinion | 1930 | 1944 |

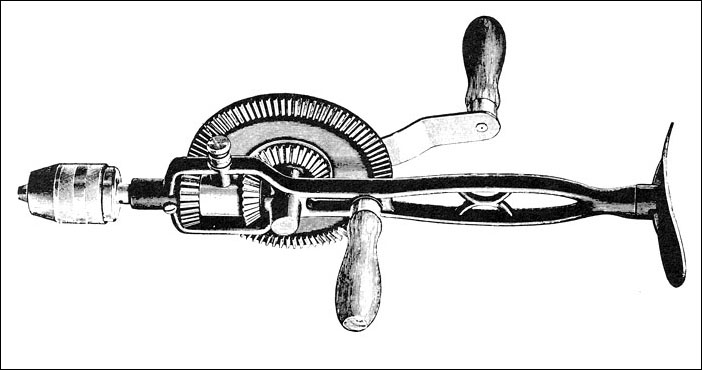

No. 6
Two-speed breast drill
Malleable iron frame; hardwood handles; non-adjustable gear guide; speeds adjusted by turning shifter knob on frame; adjustable breast plate; spindle runs on hardened steel cone bearing; three-jaw, spring-type chuck adjustable from 0 to 1/2 inch. Frame painted black; drive gear red; bright parts nickel plated.
Optional D-type handle available 1913-1930.
Illustration from 1905 catalog.
| Length | Speed(s) | Pinion Gear(s) | Start Date | End Date |
|---|---|---|---|---|
| 16 inches | 3 1/2:1 and 1 1/2:1 | double pinion | 1895 | 1931 |

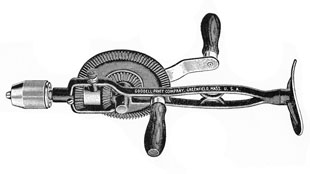

No. 6A
Two-speed breast drill
Malleable iron frame; hardwood handles; non-adjustable gear guide; speeds adjusted by turning shifter knob on frame; adjustable breast plate; spindle runs on hardened steel cone bearing and ball bearings; three-jaw, spring-type chuck adjustable from 0 to 1/2 inch. Frame painted black; drive gear red; bright parts nickel plated.
Optional D-type handle available 1913-1930. Identical to No. 6 save for bearings. Manufactured by Millers Falls as of 1931.

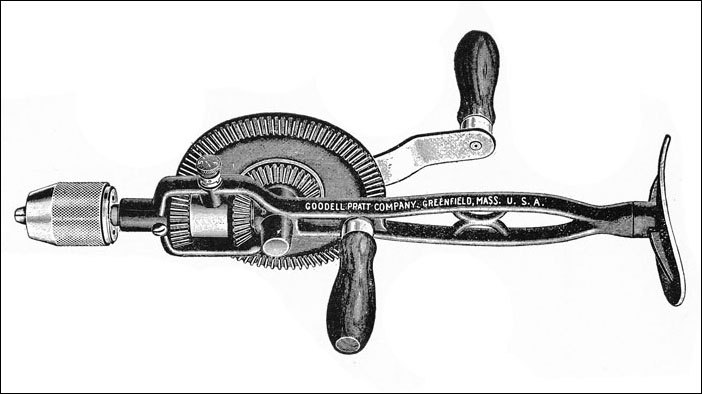

Illustration from 1911 catalog, where the company used an image of a No. 6 to represent this drill.
| Length | Speed(s) | Pinion Gear(s) | Start Date | End Date |
|---|---|---|---|---|
| 16 inches | 3 1/2:1 and 1 1/2:1 | double pinion | 1911 | 1942 |

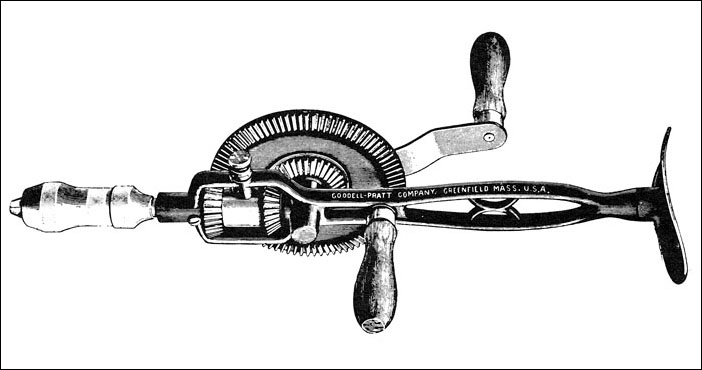

No. 7
Two-speed breast drill
- ca. 1896—malleable iron frame; hardwood handles; non-adjustable gear guide; speeds adjusted by turning shifter knob on frame; adjustable breast plate; spindle runs on hardened steel cone bearing; two-jaw chuck with two sets of jaws—one for round, one for square-shanked bits. Frame painted black; drive gear red; bright parts nickel plated.

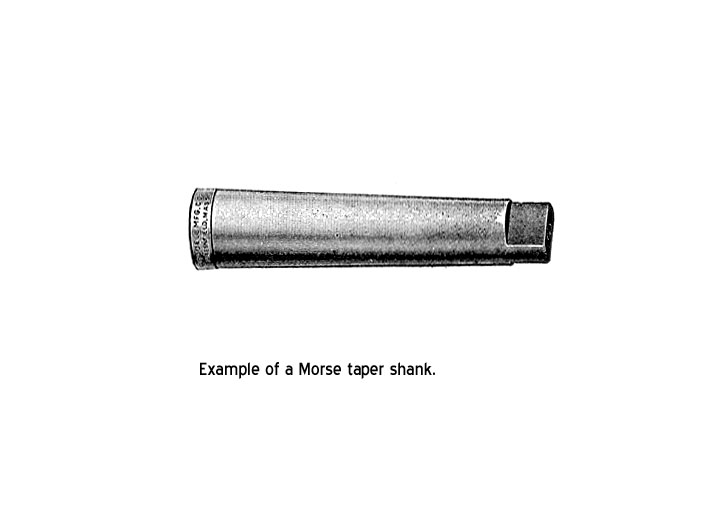

- 1935—two-jaw chuck holds square shanked, round and No. 1 Morse taper bits without swapping jaws.
Optional D-type handle available 1913-1930. Manufactured by Millers Falls as of 1931.
Illustration from 1905 catalog.
| Length | Speed(s) | Pinion Gear(s) | Start Date | End Date |
|---|---|---|---|---|
| 17 1/2 inches | 3 1/2:1 and 1 1/2:1 | double pinion | ca. 1896 | 1961 |

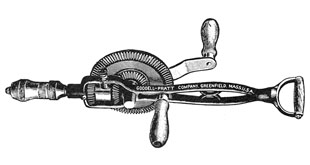

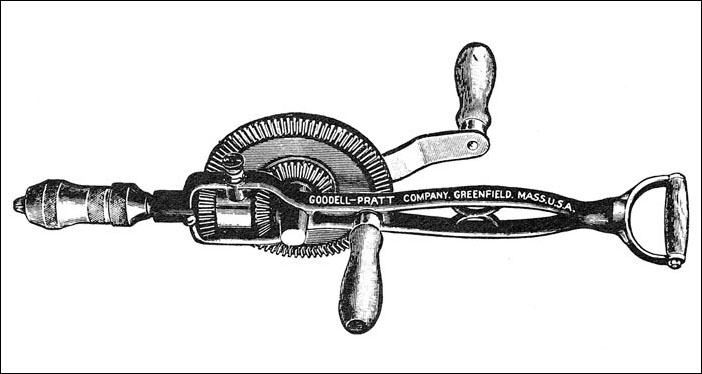

No. 7 1/2
Two-speed breast drill
Malleable iron frame; hardwood handles; D-type top handle; non-adjustable gear guide; speeds adjusted by turning shifter knob on frame; adjustable breast plate; two-jaw chuck with two sets of jaws—one for round, one for square-shanked bits. Frame painted black; drive gear red; bright parts nickel plated.
Identical to No. 7 save for handle.
Illustration from 1905 catalog.
| Length | Speed(s) | Pinion Gear(s) | Start Date | End Date |
|---|---|---|---|---|
| 17 1/2 inches | 3 1/2:1 and 1 1/2:1 | double pinion | 1898 | 1930 |

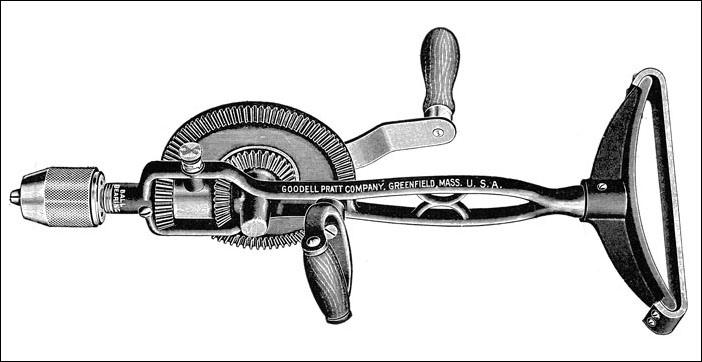

No. 20
Two-speed breast drill
Malleable iron frame; hardwood handles; D-type side handle; non-adjustable gear guide; speeds adjusted by turning shifter knob on frame; leather-strap breast plate; spindle runs on hardened steel cone bearing and ball bearings; three-jaw, spring-type chuck adjustable from 0 to 1/2 inch. Frame and breast plate casting painted black; drive gear red; bright parts nickel plated.
Illustration from 1911 catalog.
| Length | Speed(s) | Pinion Gear(s) | Start Date | End Date |
|---|---|---|---|---|
| 18 1/2 inches | 3 1/2:1 and 1 1/2:1 | double pinion | 1909 | 1931 |

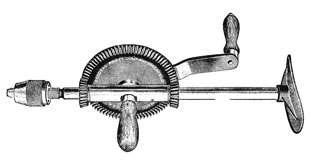

No. 55
Single-speed breast drill
Rod-type frame; hardwood handles; adjustable breast plate; three-jaw, spring-type chuck adjustable from 0 to 3/8 inch. Breast plate enameled black; drive gear red; bright parts nickel plated.
Optional D-type handle available 1913-1930.
Illustration from 1905 catalog.
| Length | Speed(s) | Pinion Gear(s) | Start Date | End Date |
|---|---|---|---|---|
| 14 1/2 inches | 3 1/2:1 | double pinion | 1905 | 1930 |

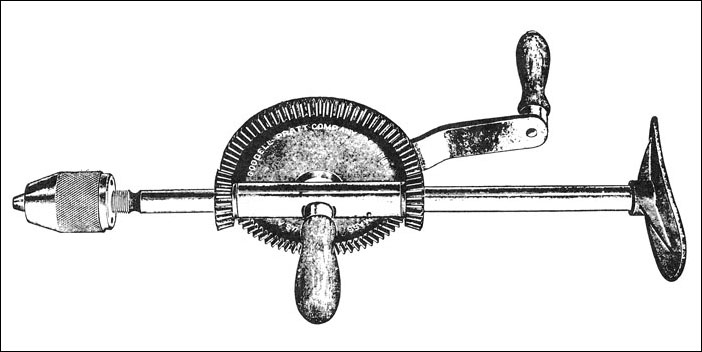

No. 56
Single-speed breast drill
Rod-type frame; hardwood handles; adjustable breast plate; three-jaw, spring-type chuck adjustable from 0 to 1/2 inch. Breast plate enameled black; drive gear red; bright parts nickel plated.
Optional D-type handle available 1913-1930. Identical to No. 55 save for chuck.

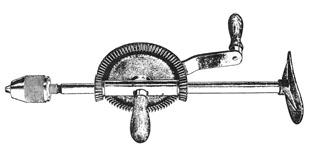

Illustration from 1905 catalog.
| Length | Speed(s) | Pinion Gear(s) | Start Date | End Date |
|---|---|---|---|---|
| 14 1/2 inches | 3 1/2:1 | double pinion | 1905 | 1931 |
No. 57
Single-speed breast drill
Rod-type frame; hardwood handles; adjustable breast plate; two-jaw chuck. Breast plate enameled black; drive gear red; bright parts nickel plated.
Optional D-type handle available 1913-1930. Identical to No. 55 save for chuck.

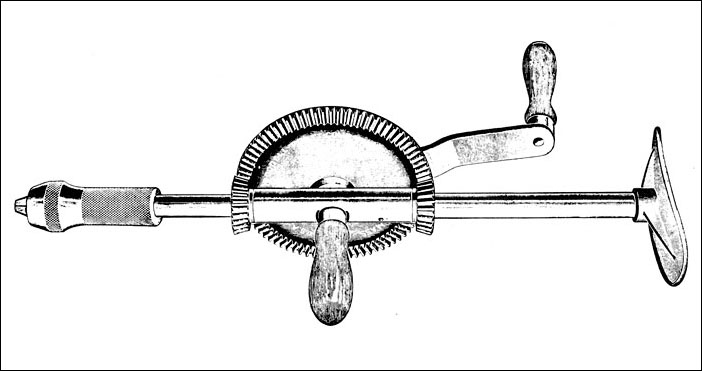

Illustration from 1905 catalog.
| Length | Speed(s) | Pinion Gear(s) | Start Date | End Date |
|---|---|---|---|---|
| 14 1/2 inches | 3 1/2:1 | double pinion | 1905 | 1930 |

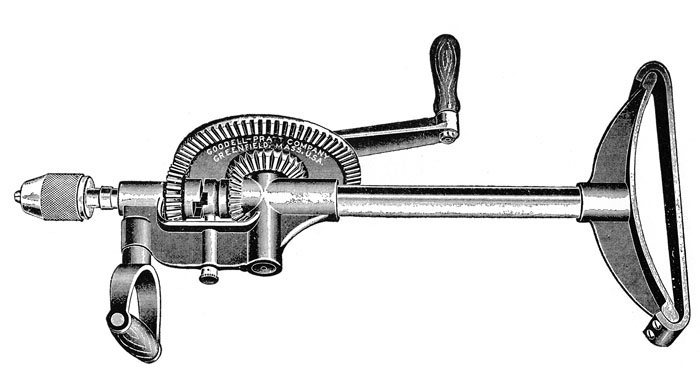

No. 58
Giant two-speed breast drill
- 1907—rod-type frame; hardwood handles; D-type side handle; leather-strap breast plate; three-jaw, spring-type chuck adjustable from 0 to 1/2 inch. Cast iron parts of frame and breast plate casting painted black; drive gear and pinion hubs red; unpainted metal parts are polished, rather than nickel plated.
- 1913—as above, but spindle runs on ball bearings.
Illustration from 1911 catalog.
| Length | Speed(s) | Pinion Gear(s) | Start Date | End Date |
|---|---|---|---|---|
| 20 1/2 inches | 3:1 and 1:1 | double pinion | 1907 | 1930 |

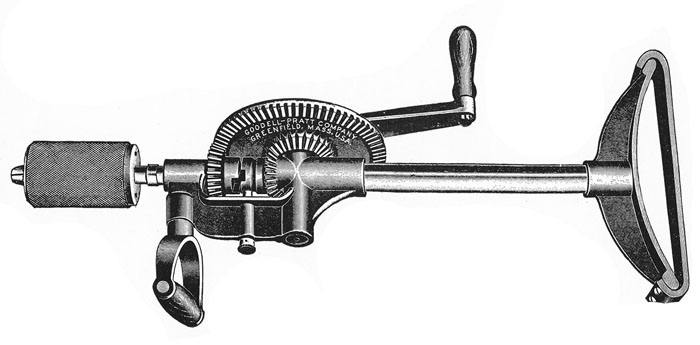

No. 59
Giant two-speed breast drill
- 1907—rod-type frame; hardwood handles; D-type side handle; leather-strap breast plate; three-jaw, spring-type chuck adjustable from 0 to 3/4 inch. Cast iron parts of frame and breast plate casting painted black; drive gear and pinion hubs red; unpainted metal parts are polished, rather than nickel plated.
- 1913—as above, but spindle runs on ball bearings.
Weighs 13 pounds.
Illustration from 1911 catalog.
| Length | Speed(s) | Pinion Gear(s) | Start Date | End Date |
|---|---|---|---|---|
| 22 1/2 inches | 3:1 and 1:1 | double pinion | 1907 | 1931 |
No. 60
Giant two-speed breast drill
Rod-type frame; hardwood handles; D-type side handle; leather-strap breast plate; fitted with socket for No. 2 Morse taper shanks. Cast iron parts of frame and breast plate casting painted black; drive gear and pinion hubs red; unpainted metal parts are polished, rather than nickel plated.

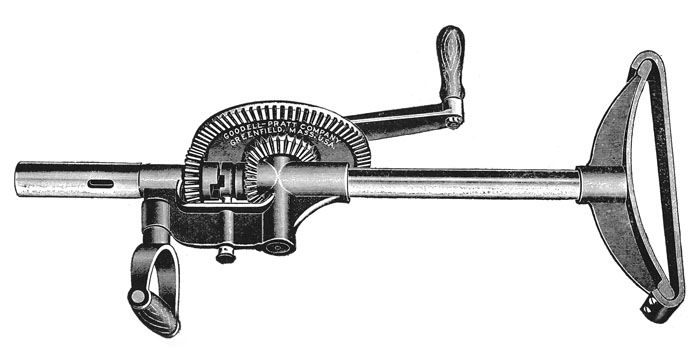

Illustration from 1911 catalog.
| Length | Speed(s) | Pinion Gear(s) | Start Date | End Date |
|---|---|---|---|---|
| 21 1/2 inches | 3:1 and 1:1 | double pinion | 1907 | 1930 |
No. 61
Two-speed breast drill
Malleable iron frame; hardwood handles; non-adjustable gear guide; speeds adjusted by turning shifter knob on frame; adjustable breast plate; fitted with socket for No. 1 Morse taper shanks. Frame painted black; drive gear red; bright parts nickel plated.
Optional D-type handle available 1913-1930.
Illustration from 1905 catalog.
| Length | Speed(s) | Pinion Gear(s) | Start Date | End Date |
|---|---|---|---|---|
| 16 inches | 3 1/2:1 and 1 1/2:1 | double pinion | 1903 | 1930 |

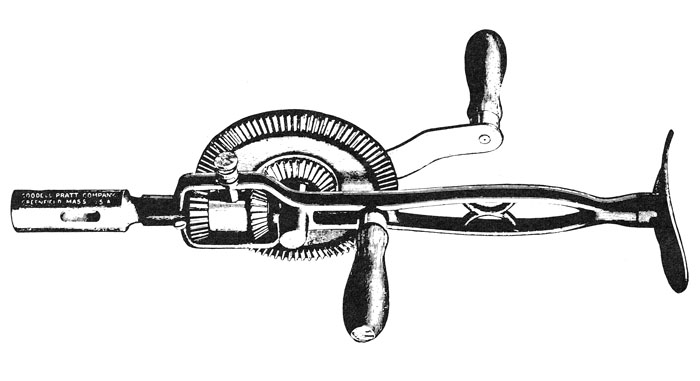

No. 62
Two-speed breast drill
Malleable iron frame; hardwood handles; non-adjustable gear guide; speeds adjusted by turning shifter knob on frame; adjustable breast plate; fitted with socket for No. 2 Morse taper shanks. Frame painted black; drive gear red; bright parts nickel plated.
Optional D-type handle available 1913-1930.
Illustration from 1905 catalog.
| Length | Speed(s) | Pinion Gear(s) | Start Date | End Date |
|---|---|---|---|---|
| 16 inches | 3 1/2:1 and 1 1/2:1 | double pinion | 1903 | 1930 |

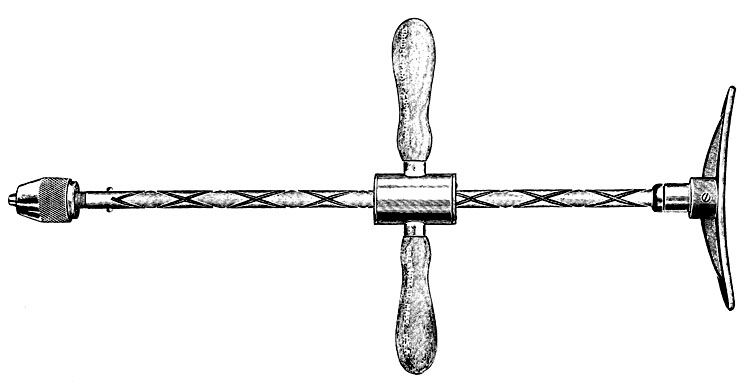

No. 103
Reciprocating Breast Drill
Breast plate supported by ball bearings; traveling bobbin features two side handles; polished steel spiral; spiral runs in bronze center nut; three-jaw chuck adjustable from 0-1/4 inches; bright parts are nickel plated.
Illustration from 1905 catalog.
| Model No. | Type | Length | Start Date | End Date |
|---|---|---|---|---|
| No. 103 | reciprocating | 16 1/2 inches | 1905 | 1931 |
No. 186
Two-speed ratcheting breast drill
- 1911—malleable iron frame; divided gear enclosure; hardwood handles; speeds adjusted by turning shifter knob marked 'fast' and 'slow'; ratchet mechanism allows continuous motion in either direction without regard to direction crank is rotated; leather-strap breast plate; spindle runs on hardened steel cone bearing and ball bearings; three-jaw, spring-type chuck adjustable from 0 to 1/2 inch. Frame and gear enclosure painted black; large gears red; bright parts nickel plated.
- 1926—as above, but gear enclosure no longer divided; ratchet controlled by knurled dials on either side of shaft
Manufactured by Millers Falls as of 1931.

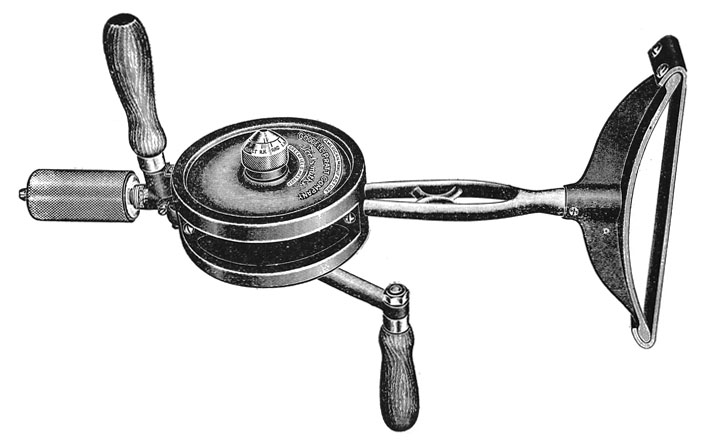

Illustration from 1911 catalog.
| Length | Speed(s) | Pinion Gear(s) | Start Date | End Date |
|---|---|---|---|---|
| 19 inches | unknown | enclosed gears | 1911 | 1933 |

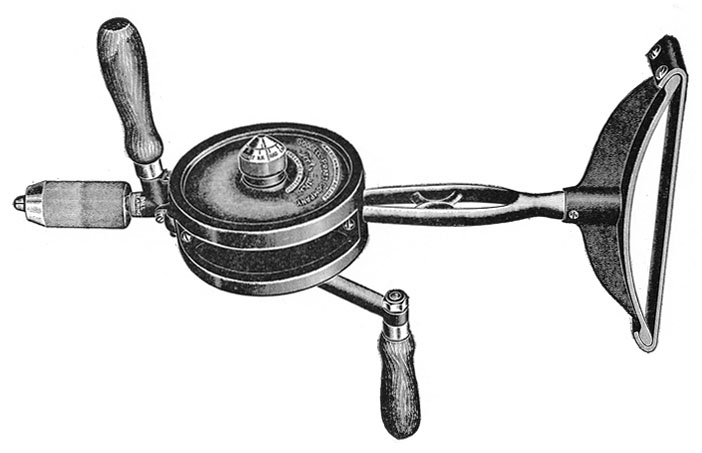

No. 187
Two-speed ratcheting breast drill
- 1911—malleable iron frame; divided gear enclosure; hardwood handles; speeds adjusted by turning shifter knob marked 'fast' and 'slow'; ratchet mechanism allows continuous motion in either direction without regard to direction crank is rotated; leather-strap breast plate; spindle runs on hardened steel cone bearing and ball bearings; two-jaw, chuck. Frame and gear enclosure painted black; large gears red; bright parts nickel plated.
- 1926—as above, but gear enclosure no longer divided; ratchet controlled by knurled dials on either side of shaft
Manufactured by Millers Falls as of 1931.
Illustration from 1911 catalog.
| Length | Speed(s) | Pinion Gear(s) | Start Date | End Date |
|---|---|---|---|---|
| 18 3/4 inches | unknown | enclosed gears | 1911 | 1933 |

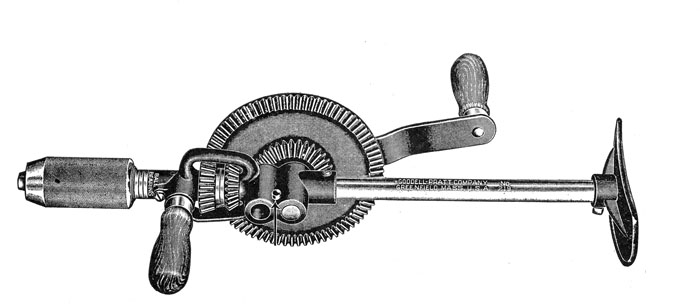

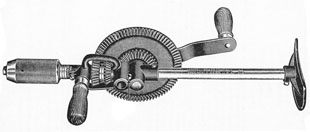

No. 219
Two-speed breast drill
Rod-type iron frame; single release button allows speed change without removing drill from work; stained hardwood handles; adjustable breast plate; ball thrust bearing; two-jaw chuck. Cast iron parts of frame and breast plate painted black; drive gear red; unpainted metal parts are polished, rather than nickel plated.
Optional D-type handle available 1913-1930. Identical to No. 477 except for chuck. Manufactured by Millers Falls as of 1931.
Illustration from 1923 catalog.
| Length | Speed(s) | Pinion Gear(s) | Start Date | End Date |
|---|---|---|---|---|
| 16 1/2 inches | 3 1/2:1 and 1 1/2:1 | double pinion | 1913 | 1936 |

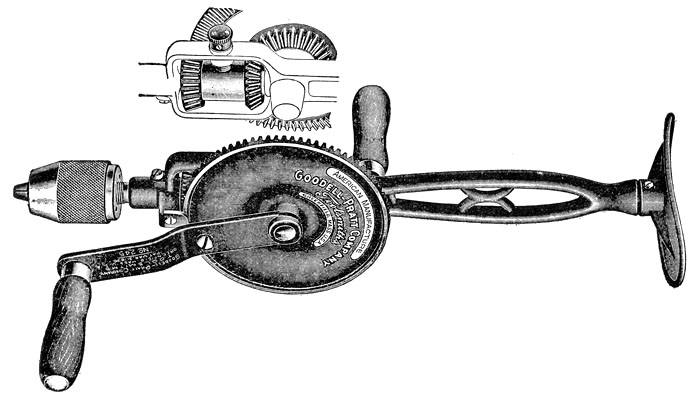

No. 245
Two-speed breast drill
Malleable iron frame; hardwood handles; non-adjustable gear guide; speeds adjusted by turning shifter knob on frame; adjustable breast plate; spindle runs on hardened steel cone bearing; three-jaw, spring-type chuck adjustable from 0 to 1/2 inch. Frame and breast plate painted black; drive gear red; unpainted parts are polished.
Optional D-type handle available 1913-1930.
Illustration from 1923 catalog.
| Length | Speed(s) | Pinion Gear(s) | Start Date | End Date |
|---|---|---|---|---|
| 16 inches | 3 1/2:1 and 1 1/2:1 | double pinion | 1913 | 1931 |

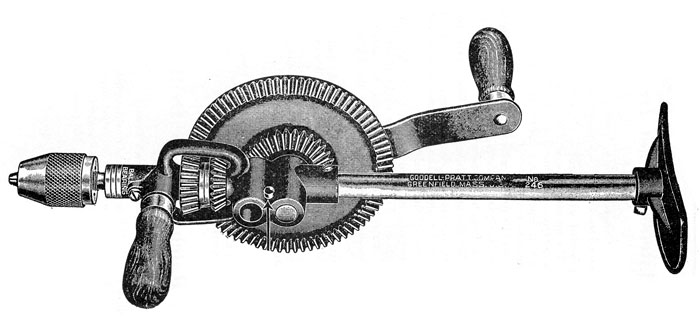

No. 246
Two-speed breast drill
Rod-type frame; single release button allows speed change without removing drill from work; stained hardwood handles; adjustable breast plate; ball thrust bearing; three-jaw, spring-type chuck adjustable from 0 to 3/8 inch. Cast iron parts of frame and breast plate painted black; drive gear red; unpainted metal parts are polished, rather than nickel plated.
Optional D-type handle available 1913-1930. Identical to No. 219 except for chuck.
Illustration from 1923 catalog.
| Length | Speed(s) | Pinion Gear(s) | Start Date | End Date |
|---|---|---|---|---|
| 16 1/2 inches | 3 1/2:1 and 1 1/2:1 | double pinion | 1913 | 1930 |

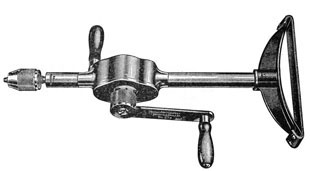

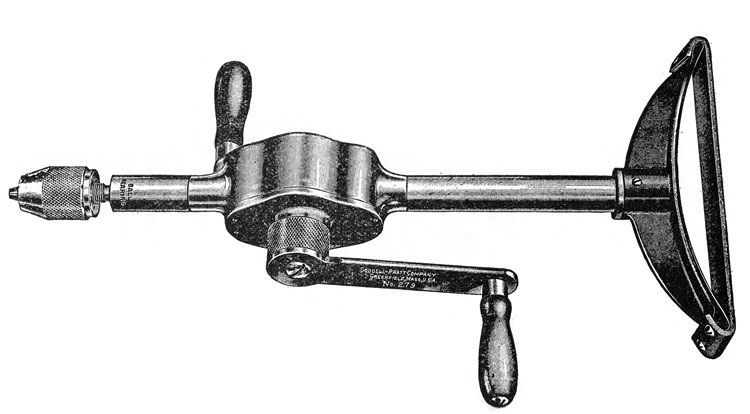

No. 279
High-speed breast drill
Rod-type frame; gears enclosed in aluminum casing; hardwood handles; speeds adjusted by turning knurled ring at base of crank; leather-strap breast plate; ball bearings; three-jaw, spring type chuck adjustable from 0 to 1/2 inch. Aluminum parts are polished; breast plate casting is japanned; bright parts are nickel plated.
Illustration from 1923 catalog.
| Length | Speed(s) | Pinion Gear(s) | Start Date | End Date |
|---|---|---|---|---|
| 20 inches | 7:1 and 2:1 | enclosed gears | 1915 | 1933 |
No. 473
Two-speed breast drill

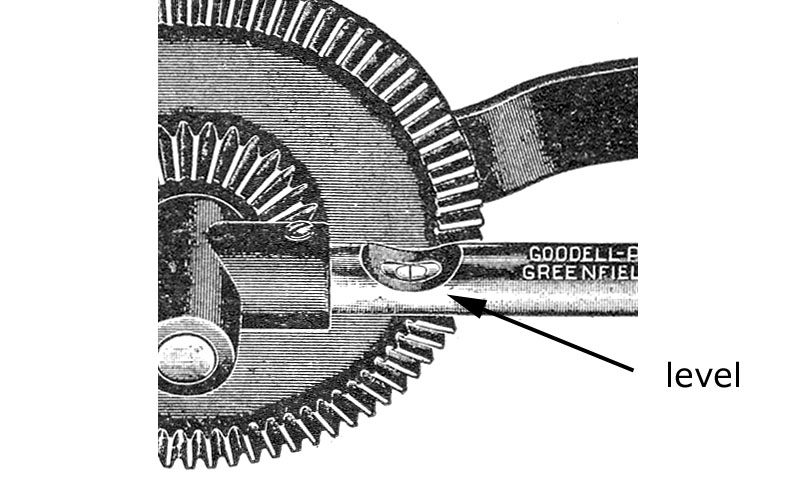

Rod-type iron frame; level embedded in frame; single release button allows speed change without removing drill from work; stained hardwood handles; adjustable breast plate; ball thrust bearing; two-jaw chuck. Cast iron parts of frame and breast plate painted black; drive gear red; unpainted metal parts are polished, rather than nickel plated.
Optional D-type handle available 1917-1930. Manufactured by Millers Falls as of 1931.
Illustration from 1923 catalog.
| Length | Speed(s) | Pinion Gear(s) | Start Date | End Date |
|---|---|---|---|---|
| 16 1/2 inches | 3 1/2:1 and 1 1/2:1 | double pinion | 1916 | 1933 |
No. 477
Two-speed breast drill
Rod-type frame; single release button allows speed change without removing drill from work; hardwood handles; ball thrust bearing; adjustable breast plate; ball thrust bearing; three-jaw, spring type chuck adjustable from 0 to 1/2 inch. Cast iron parts of frame and breast plate painted black; drive gear red; unpainted metal parts are polished, rather than nickel plated.
Optional D-type handle available 1917-1930. Manufactured by Millers Falls as of 1931.
Illustration from 1923 catalog.
| Length | Speed(s) | Pinion Gear(s) | Start Date | End Date |
|---|---|---|---|---|
| 16 1/2 inches | 3 1/2:1 and 1 1/2:1 | double pinion | 1916 | 1938 |

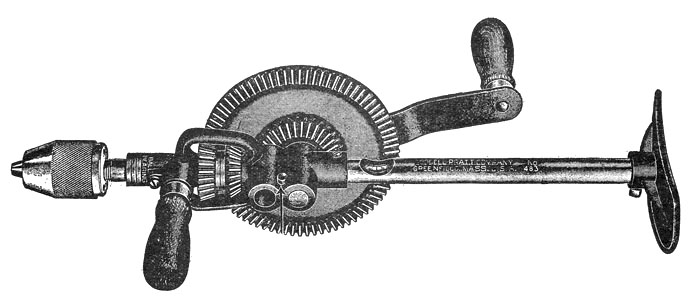

No. 483
Two-speed breast drill
Rod-type frame; level embedded in frame; single release button allows speed change without removing drill from work; stained hardwood handles; adjustable breast plate; ball thrust bearing; spring type chuck adjustable from 0 to 3/8 inch. Cast iron parts of frame and breast plate painted black; drive gear red; unpainted metal parts are polished, rather than nickel plated.
Optional D-type handle available 1917-1930. Identical to No. 246 save for its level. Manufactured by Millers Falls as of 1931.
Illustration from 1923 catalog.
| Length | Speed(s) | Pinion Gear(s) | Start Date | End Date |
|---|---|---|---|---|
| 16 1/2 inches | 3 1/2:1 and 1 1/2:1 | double pinion | 1916 | 1933 |

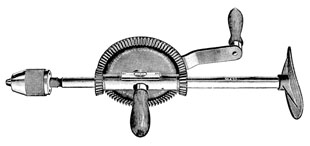

No. 493
Single-speed breast drill
Rod-type frame; hardwood handles; adjustable breast plate; level attached to frame; three-jaw, spring-type chuck adjustable from 0 to 1/2 inch; Breast plate enameled black; drive red; bright parts nickel plated.
Optional D-type handle available 1917-1930. Identical to No. 56 save for its level.
Illustration from 1923 catalog.
| Length | Speed(s) | Pinion Gear(s) | Start Date | End Date |
|---|---|---|---|---|
| 14 1/2 inches | 3 1/2:1 and 1 1/2:1 | double pinion | 1916 | 1930 |

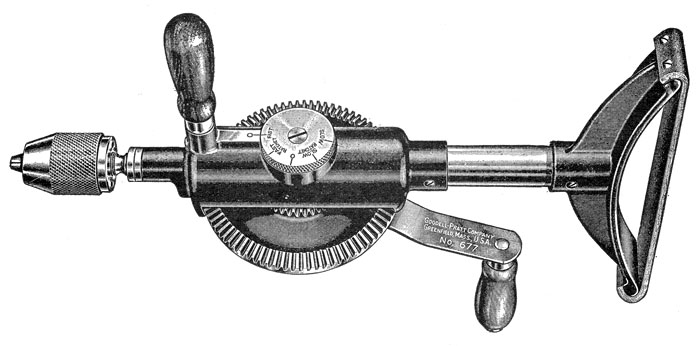

No. 677
Two-speed ratcheting breast drill
Aluminum alloy frame; enclosed gears; hardwood handles; pinions enclosed in die-cast housing; speed changed by turning shifter knob on side of gear housing; right hand ratchet only; leather-strap breast plate; ball thrust bearing; three-jaw, spring-type chuck adjustable from 0 to 1/2 inch. Pinion housing and breast plate painted black; drive gear red; tubular frame and bright parts nickel plated.
Manufactured by Millers Falls as of 1931.
Illustration from 1923 catalog.
| Length | Speed(s) | Pinion Gear(s) | Start Date | End Date |
|---|---|---|---|---|
| 18 1/4 inches | 3 1/2:1 and 1 1/2:1 | enclosed gears | 1923 | 1933 |

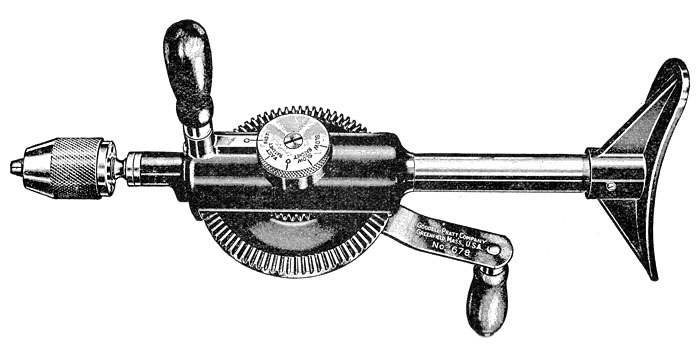

No. 678
Goodell-Pratt two-speed ratcheting breast drill
Hollow, tube-type frame of aluminum; hardwood handles; pinions enclosed in aluminum alloy housing; speed changed by turning shifter knob on side of gear housing; right hand ratchet only; hardwood handles; aluminum breast plate; ball thrust bearing; three-jaw, spring-type chuck adjustable from 0 to 1/2 inch. Pinion housing and breast plate painted black; drive gear red; tubular frame and bright parts nickel plated.
Manufactured by Millers Falls as of 1931.
Illustration from 1930 catalog.
| Length | Speed(s) | Pinion Gear(s) | Start Date | End Date |
|---|---|---|---|---|
| 17 1/2 inches | 3 1/2:1 and 1 1/2:1 | enclosed gears | 1926 | 1942 |
No. 1200
Single-speed breast drill
Rod-type frame; hardwood handles; adjustable breast plate; two-jaw chuck. Breast plate enameled; drive gear red; unpainted metal parts are polished, rather than nickel plated.
Optional D-type handle available 1917-1930. Identical to No. 55 save for chuck.

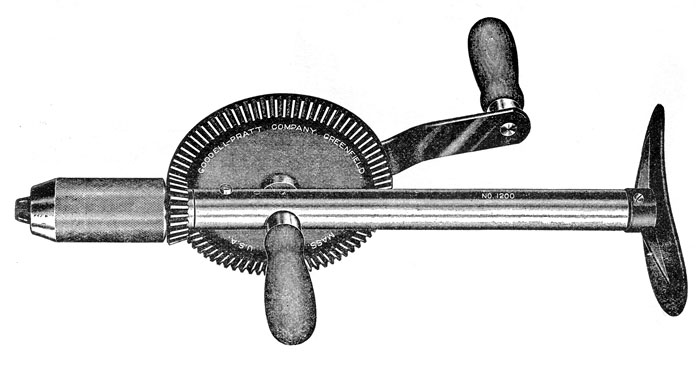

Illustration from 1923 catalog.
| Length | Speed(s) | Pinion Gear(s) | Start Date | End Date |
|---|---|---|---|---|
| 14 1/4 inches | unknown | single pinion | 1916 | 1930 |

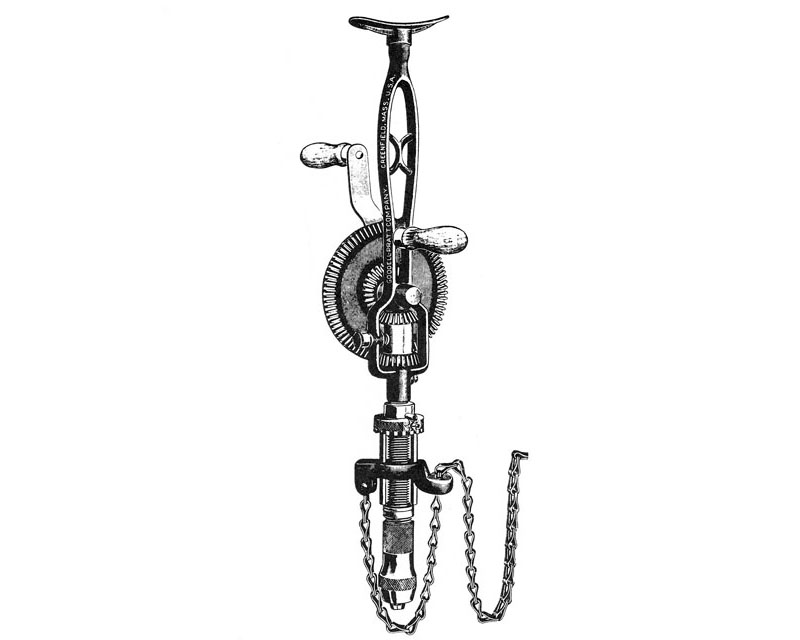

No. 7307
Combination two-speed breast and chain drill
Malleable iron frame; hardwood handles; non-adjustable gear guide; speeds adjusted by turning shifter knob on frame; adjustable breast plate; ball bearings; two-jaw chuck; includes chain. Frame painted black; drive gear red; bright parts nickel plated.
Optional D-type handle available 1917-1930.

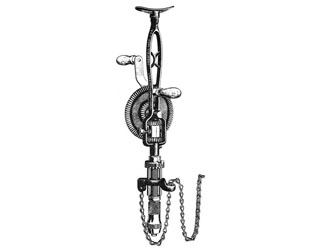

Illustration from 1905 catalog.
| Length | Speed(s) | Pinion Gear(s) | Start Date | End Date |
|---|---|---|---|---|
| 21 inches | 3 1/2:1 and 1 1/2:1 | double pinion | 1905 | 1931 |

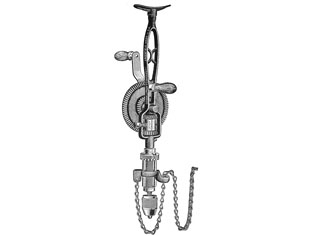

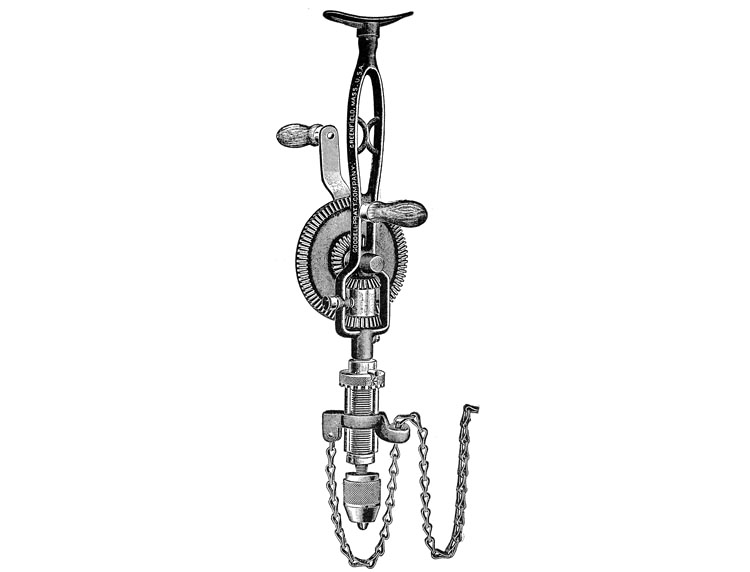

No. 7316
Combination two-speed breast and chain drill
Malleable iron frame; hardwood handles; non-adjustable gear guide; speeds adjusted by turning shifter knob on frame; adjustable breast plate; ball bearings; three-jaw, spring-type chuck adjustable from 0 to 1/2 inch; includes chain. Frame painted black; drive gear red; bright parts nickel plated.
Optional D-type handle available 1917-1930. Manufactured by Millers Falls as of 1931.
Illustration from 1911 catalog.
| Length | Speed(s) | Pinion Gear(s) | Start Date | End Date |
|---|---|---|---|---|
| 21 inches | 3 1/2:1 and 1 1/2:1 | double pinion | 1907 | 1933 |

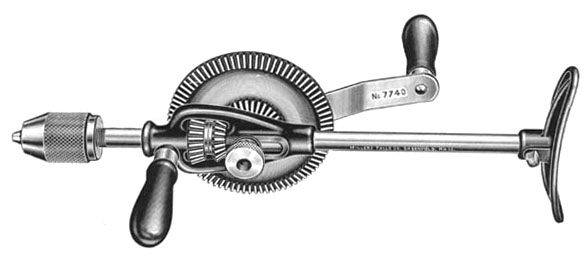

No. 7740
Shelburne two-speed breast drill, 1930-1931
Rod-type frame; speed is changed by loosening knurled nut and sliding main gear; adjustable breast plate; three-jaw, spring type chuck adjustable from 0 to 1/2 inch. Stained hardwood handles; frame painted black; drive gear red.Illustration from 1955 catalog.
Introduced as part Goodell-Pratt's Shelburne series of economy tools, merged into Millers Falls' line of Mohawk-Shelburne the following year.
| Length | Speed(s) | Pinion(s) | Start Date | End Date |
|---|---|---|---|---|
| 16 1/2 inches | 3 1/2:1 and 1 1/2:1 | double pinion | 1930 | 1931 |
